The innovative roller design in the RX50 enables the pump in handling the toughest pumping challenges, including extremely abrasive and aggressive fluids, solid loaded liquids, as well as shear sensitive and very viscous materials in a wide variety of industries.

Being eligible for a wide range of modifications, the RX50 could work on low rpm or high rpm when needed with the possibility of installing different motor powers based on the application.

• Seal less design
  No mechanical seal that can cause leakage.
• Lowest operational cost with fast and easy maintenance
  RollX pumps displace the medium in a hose, requiring only one component to be changed, which means that maintenance costs are considerably low.
• Bi directional flow
  Reversible flow, suction and discharge.
• No mixing of the medium
  Due to the peristaltic effect.
• Self priming and continuous dry running
  RollX pumps can self prime up to 9 meters and run dry indefinitely.
• Long service intervals
  Wear resistant hose is the only part that is in contact with the medium.

• Maximum Working Pressure ……………….. 12 Bar
• Maximum Operating Temperature ………. 100 C
• Maximum Hard Solids ………………………….. 15 mm
• Maximum Soft Solids ……………………………. 35 mm
• Maximum Suction Lift …………………………… 9 meters (Based on the medium)
• Hose ID: 50 Hose OD: 80 Hose Length: 1820
• Hose Material could be ………..NR, NBR, Hypalon/CSM or EPDM ––(food grade or ATEX)

Actual sizes may slightly vary based on motor and gearbox selection

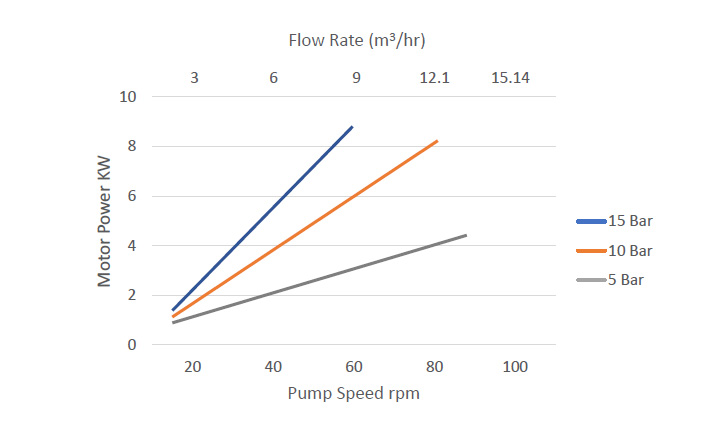

RX50 Performance Curve
